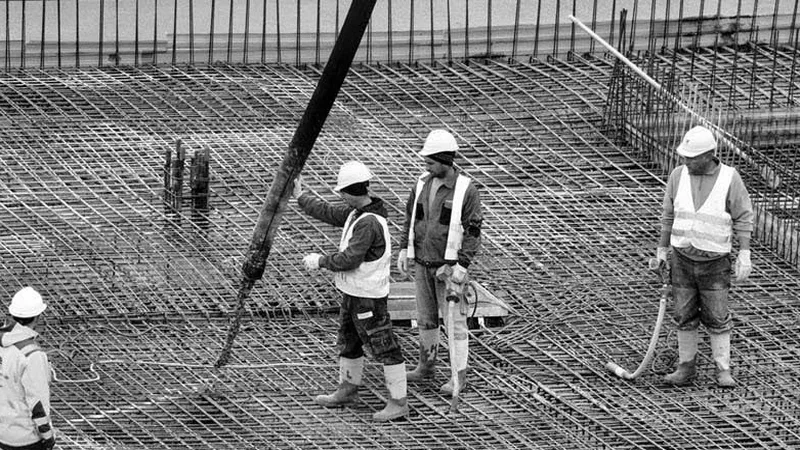

Raft/Mat Foundation Design in Cambridge: Ground Conditions That Matter

Evidence-based design. Reliable delivery.

LEARN MORE

In Cambridge, the ground rarely gives you a straight answer. Between the stiff Gault Clay that swells with the seasons and the pockets of loose terrace gravels along the Cam, designing a raft foundation here means anticipating what the soil will do three winters from now, not just what it does today. Our team has worked on enough extensions in Chesterton and new builds near Addenbrooke’s to know that a standard ‘uniform bearing pressure’ assumption falls apart when the upper metre of made ground sits over a desiccated clay crust. We approach every raft/mat foundation design by mapping the stiffness profile first — using in-situ test data rather than textbook correlations — because in East Anglia the difference between a 150 mm and a 300 mm thick slab often comes down to one soft lens nobody spotted. When the stratigraphy is patchy we’ll combine the raft analysis with CPT testing to pin down the transition between the weathered zone and intact clay without the disturbance you get from borehole sampling.

A raft foundation in Cambridge does not just carry the building — it bridges the uncertainty between the gravels, the Gault Clay, and whatever the Fenland edge left behind.

Our service areas

How we work

Cambridge sits barely 6 metres above ordnance datum through most of the city centre, yet the founding conditions can swing from dense gravel to compressible alluvium within the footprint of a single residential plot. That low relief is deceptive: the River Cam’s historic floodplain has left sequences of soft silty clay that are notorious for long-term consolidation settlement under sustained load. Where a strip footing might tilt, a well-proportioned raft/mat foundation design spreads the column loads across enough area to keep differential settlement below 10 mm — a figure we target explicitly in our BS EN 1997-1 serviceability checks. For heavier commercial frames on the city fringe, where glacial till overlies the Gault, we often pair the raft design with stone columns through the upper compressible layer to stiffen the subgrade before pouring, cutting total settlement by roughly half compared to an unreinforced raft on the same profile.
Raft/Mat Foundation Design in Cambridge: Ground Conditions That Matter
Technical reference — Cambridge

Local considerations

The piece of kit that tells you more about a Cambridge raft than any drawing is the plate load test rig — a circular bearing plate, typically 300 to 600 mm diameter, jacked against a kentledge or a reaction frame anchored into the ground. We set it up directly on the formation level after stripping the topsoil, run two or three load cycles, and watch the load-settlement curve in real time. On Gault Clay the first cycle often shows a soft response if the crust has been disturbed during excavation; the second cycle gives you the reload modulus that actually governs the raft’s behaviour under dead load. Skipping this step and using a textbook subgrade modulus — especially in Cambridge where the water table sits high through winter and the clay stiffness drops — leads to under-designed slabs that crack within the first two heating seasons as the building settles differentially. We have seen it happen on sites where the ground investigation stopped at five boreholes and nobody connected the dots between the river terrace edge and the deeper compressible layer beneath.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.com

Regulatory framework

BS EN 1997-1:2004 (Eurocode 7: Geotechnical design – General rules), BS EN 1992-1-1:2004 (Design of concrete structures, with UK National Annex), BS 5930:2015 (Code of practice for ground investigations), BS 8004:2015 (Code of practice for foundations), BS 8102:2009 (Protection of below-ground structures against water from the ground)

Typical values

ParameterTypical value
Analysis methodWinkler spring model calibrated to in-situ stiffness (plate load or CPT)
Design codeBS EN 1997-1:2004 + UK National Annex
Soil-structure interactionCoupled finite-element where column loads exceed 1,200 kN
Allowable total settlement (residential)25 mm maximum, verified by settlement monitoring
Differential settlement targetNot exceeding 1/500 of span for framed structures
Subgrade modulus derivationBack-calculated from CPT qc or plate-load test data, not tabulated
Typical slab thickness range (local)250–600 mm for lightly-loaded residential; 600–1200 mm for commercial
Compressible layer treatmentPre-loading or stone columns where mv exceeds 0.3 m²/MN

Questions and answers

What does a raft foundation design cost for a typical house extension in Cambridge?

For a single-storey rear extension or a modest new-build on a residential plot, the design package — covering ground investigation interpretation, geotechnical design report with settlement calculations, and reinforcement drawings — usually falls between £830 and £1,450. Larger two-storey houses or plots with poor ground requiring stone column treatment push the fee toward £2,200–3,650, particularly when the client needs the design to satisfy a building warranty provider’s technical requirements.

When is a raft foundation better than strip footings in Cambridge?

A raft becomes the better option when the near-surface soils vary significantly across the building footprint — a situation we encounter frequently on the river terrace deposits east of the Cam where gravel lenses pinch out over soft alluvium — or when the bearing stratum is more than 1.5 m below formation level and deep trench fill footings become uneconomical. Rafts also suit sites with mature trees within influencing distance, where the clay shrinkage potential means isolated footings would suffer differential heave that a stiffened raft can bridge.

How do you account for the Gault Clay’s shrink-swell behaviour in the raft design?

We address this through three measures. First, we classify the clay’s plasticity using Atterberg limit testing and derive the heave potential from the oedometer swelling pressure. Second, we design the raft with edge stiffening beams deep enough to span the active zone — typically 1.0–1.2 m in Cambridge — and specify compressible void formers beneath the beams where the heave risk is moderate to high. Third, we recommend a root-barrier trench at the perimeter when the raft sits within the zone of influence of deciduous trees, limiting seasonal moisture extraction that drives differential movement.
